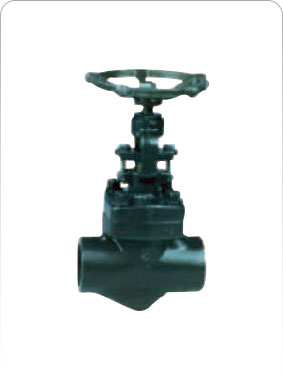

Forged Steel Globe Valve
Home
Products
Forged Steel Globe Valve
Forged Steel Globe Valve
Parts List
Parts
Material
Body
ASTM A 105
Bonnet
ASTM A 105
Seat
AISI 410
Valve
AISI 410
Stem
AISI 410
Gland
AISI 410
Body Bolts
ASTM A 193 B 7
Gland Bush
AISI 410
Gasket
SPW-SS 304 - CAP
Gland Packing
Asbestos Graphited With Inconel Wire/or To Suit Services
Eye Bolt
ASTM A 193 2 H
Eye Bolt's Nuts
ASTM A 194 2 H
Yock Bush
ASTM A 439 Gr. D 2/Carbon Steel
Sheelnut
ASTM A 194 2 H
Wheel
Malleable Iron/carbon Steel
APPLICABLE STANDARDS:
MANUFACTURING STANDARD :
BS 5352 MSS SP 84
SOCKET WELD :
ANSI B 16.11
SCREWED :
NPT- ANSI B 2.1, BSPT- BS21
BW ENDS TO :
ANSI B 16.25
TESTING STANDARD :
API 598
TEST PRESSURE
SHELL :
3000 psig
SEAT :
2000 psig AIR-80 PSIG
SOCKET
END
SIZE
15
20
25
40
50
L
85
92
106
122
140
H
158
164
180
240
258
H1
165
173
192
254
275
ØWh
80
80
95
150
150
ØB
21.7
27
33.8
48.6
61.1
C
10
13
13
13
16
